Vibration Monitoring & Predictive Maintenance

Remote intelligent monitoring system builds the Internet of Things to solve the problem of data acquisition through the arrangement of sensors, makes data sharing and analysis through the use of a large number of intelligent algorithms to help customers achieve all-round intelligent monitoring for equipment, reduce the risk of equipment negligence, disrepair, reduce unplanned downtime effectively, conduct full lifecycle management, improve component availability, manage spare parts, and improve operational efficiency.

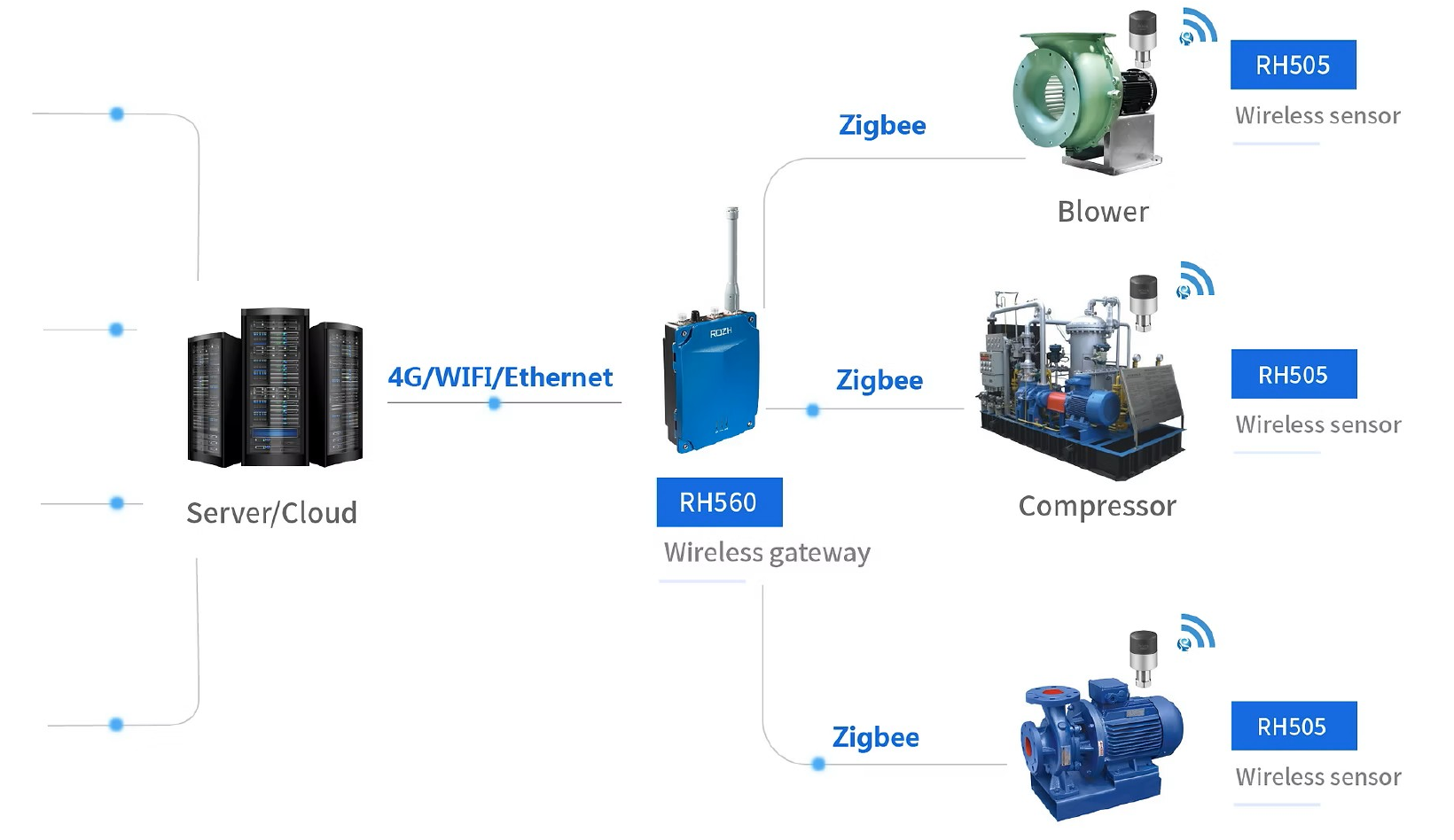

System Design

RH505 Wireless sensor

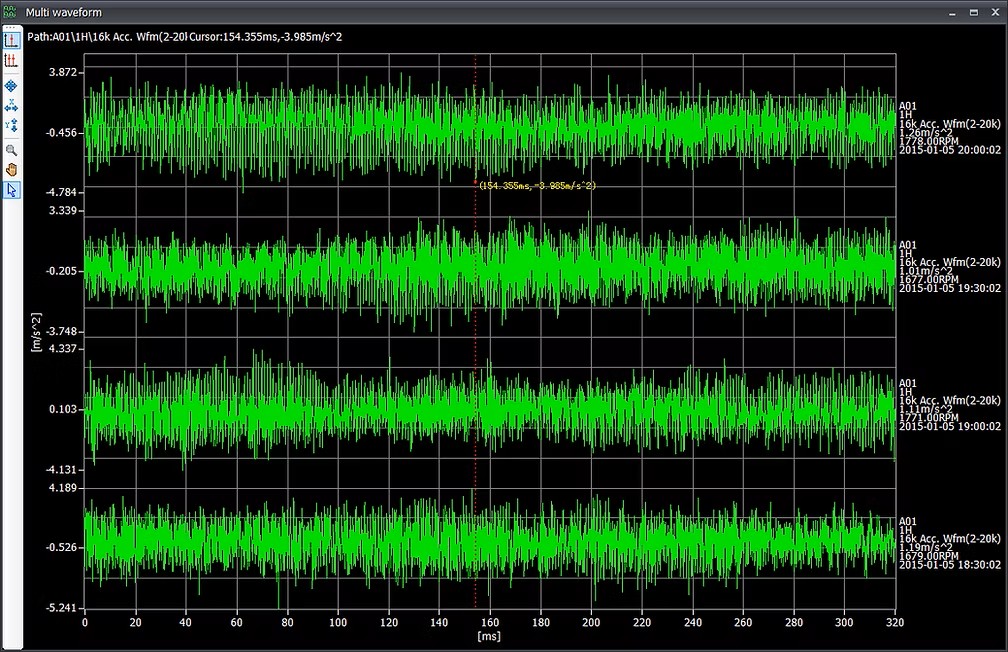

Wireless vibration and temperature integrated sensor, collect velocity, acceleration, displacement and temperature signals simultaneously. The vibration signal can be displayed as spectrum/waveform in the software.
Intelligent self-inspect function, warning for abnormal anytime, saved time to check on site.
ExiaIICT4, can be used in zone 0, IP67, waterproof and dust-proof.
Long distance communication transmission from Gateway according to real-time conditions

RH560 Wireless Sensor Collector

Flexible Connectivity & High-Resolution Data: 3G/4G/Wi-Fi/Ethernet with detailed waveform and spectrum capture.
Synchronous Multi-Channel Acquisition: Simultaneous vibration and temperature data capture across all channels
Vibration & Temperature Monitoring: Dual-parameter monitoring for improved machine protection
Alarm & Notifications: Configurable alarms based on vibration levels, temperature indexes, and thresholds
