ProfiTrace Toolkit – “The Industrial Case” for PROFIBUS Network Engineers

1. Introduction to ProfiTrace Troubleshooting Toolkitit

ProfiTrace Troubleshooting Toolkit is a perfect combination of dedicated hardware and smart analysis software. It turns your laptop into a mobile PROFIBUS control station.

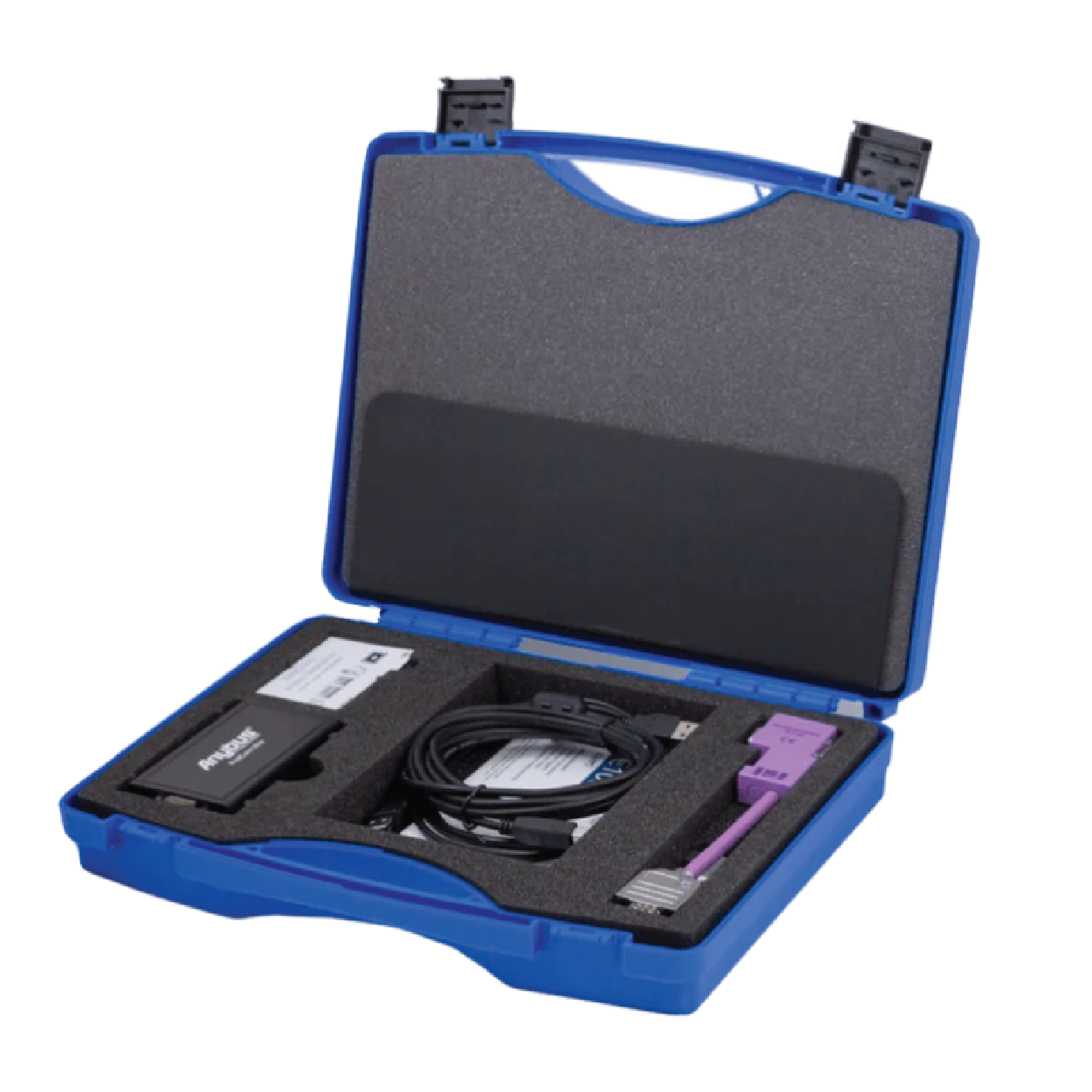

The entire toolkit is packed inside a strong and durable technical suitcase, ready to travel with engineers to any factory or job site. It is an ideal tool for network diagnostics and on-site troubleshooting, even while the system is running.

Main Components of the ProfiTrace Troubleshooting Toolkit:

• ProfiCore Ultra: A USB hardware interface that acts as a high-speed data collector. It allows accurate measurement and analysis of PROFIBUS network signals.
• Phần mềm ProfiTrace: An intuitive and user-friendly interface that displays network data, detects faults, analyzes communication quality, and supports fast network diagnostics.
• Phụ kiện đầy đủ: Includes Tap Connector, adapter cables, and a shockproof carrying case, making it convenient for on-site work and travel.

ProfiTrace is an essential tool for maintenance and troubleshooting. It is considered one of the most powerful mobile PROFIBUS analyzers available today. The tool allows engineers to measure and analyze the network even while the production line is running, without stopping the system.

2. Key Features

2.1 Analyzer & Live List – Real-Time Monitoring and Analysis

This is the main overview screen for checking network status instantly.

Live List shows all Master and Slave devices on the network using clear color codes:

• Green – Normal operation

• Red – Error

• Flashing – Intermittent error

It quickly detects issues such as configuration errors, lost packets, repeated data (repeats), or devices dropping out of the network.

2.2 High-Speed Oscilloscope – Physical Layer Testing

This is the core and most powerful feature of ProfiTrace.

It allows engineers to view the real waveform of PROFIBUS signals.

You can easily detect complex problems such as electrical noise, signal reflections caused by incorrect termination, short circuits, or broken cables — common causes of unstable and unpredictable failures.

2.3 Bar Graph – Quick Signal Quality Evaluation

Displays the average voltage level of each device in a bar chart format.

This helps engineers quickly identify which station has weak signals or overly strong signals that may cause saturation and affect the entire network.

2.4 Network Topology Scan – Automatic Network Mapping

Automatically recreates the real connection layout of the PROFIBUS network without stopping the system.

It clearly shows how devices are connected and estimates cable lengths between stations.

2.5 Reporting – Professional Reports in One Click

Generates a complete network health report, including signal quality, detected errors, topology, and technical parameters.

This feature is very useful for system acceptance, technical handover, or periodic maintenance reporting.

Read more: ProfiTrace Tool Demo for PROFIBUS Troubleshooting

3. Comparison of ProfiTrace Troubleshooting Toolkit Versions

3.1 ProfiTrace Troubleshooting Toolkit Ultra Standard (Item Number: 37020)

This is the most basic package, suitable for maintenance engineers who need to quickly check the physical and logical layers of a PROFIBUS DP network.

Strengths:
Includes all core analysis features (Analyzer) and the Oscilloscope to detect noise, signal reflections, and other common faults.

Limitations:
It cannot automatically generate a network topology to show the exact cable break distance, and it does not support direct measurement of PROFIBUS PA networks (used in hazardous areas).

3.2 ProfiTrace Troubleshooting Ultra Plus (Item Number: 37021)

This is the version most factories choose because it offers a good balance between cost and performance.

Upgrade compared to Standard: Includes the Topology Scan feature.

This feature is very important for troubleshooting. It automatically draws the real network layout and calculates cable distances between devices.
When a cable break or device failure occurs, you can see the exact fault location on the diagram (for example: “Fault located 45 meters from the Master station”).

3.3 ProfiTrace Troubleshooting Ultra Pro (Item Number 38022)

Designed for system integrators, large factories with both DP and PA networks, or technical service providers.

Compared to the Plus package, the Pro version includes the following upgrades:

PA Probe Ultra:
An additional compact hardware module used to directly measure PROFIBUS PA networks (commonly used for level, pressure, and flow sensors).
If your plant uses PROFIBUS PA, this package is required.

ProfiCaptain:
Turns your laptop into a virtual PLC (Master). You can control, read, and write I/O data of Slave devices without a real PLC.
This is very useful for lab testing or when the actual PLC is not available.

OPC Server:
Allows network status data to be sent to higher-level monitoring systems such as SCADA or DCS via the OPC standard.
